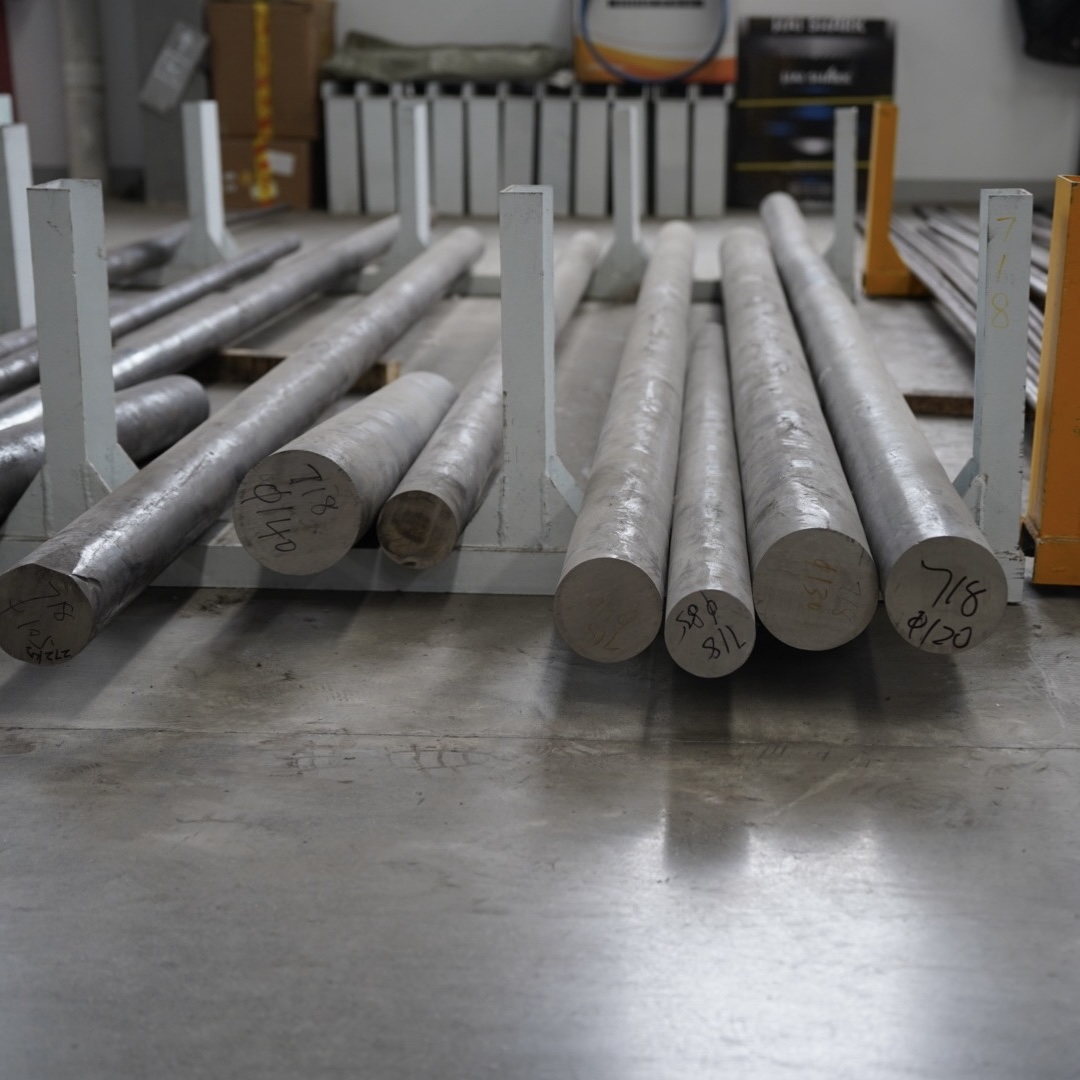

INCOLOY 718（UNSN07718） Bar/Rod
High-Strength Nickel-Chromium Alloy for Cryogenic to 704°C Applications
INCOLOY 718 bar is commonly used for machined components such as valve parts, pump shafts, fasteners, flanges and fittings where broad corrosion resistance is required. The alloy provides outstanding resistance to pitting, crevice corrosion, and chloride stress corrosion cracking, and offers excellent weldability and fabrication characteristics for critical chemical process equipment.
As a professional Chinese nickel-based alloy manufacturer, we supply INCOLOY 718 in multiple product forms with stable chemistry, consistent mechanical properties, and flexible dimensional customization for global industrial users.
Typical supply range (custom sizes and tolerances available upon request):
Item | Range / Options | Notes |
Diameter | 6 – 450 mm | Round bar standard; square/flat/hex available by request. |
Length | Up to 6000 mm | Cut-to-length (sawing) by agreement; define tolerance if critical. |
Shape | Round / Square / Flat / Hex | Forged / hot-rolled / cold-drawn per size requirement. |
Surface finish | Black / Peeled / Ground / Polished | Surface machining available for tight tolerance. |
End | Saw-cut / Facing / Chamfer | End prep available for machining and assembly. |
Straightness / tolerance | Per ASTM/EN or as agreed | Define straightness for long shafts and precision parts. |
Delivery condition | Solution annealed (standard) | Annealed & pickled/bright depending on size/finish. |
Dimension definition: DIA × LENGTH.
• Excellent resistance to pitting and crevice corrosion in chloride media
• Outstanding resistance to chloride stress corrosion cracking (SCC)
• Strong resistance to oxidizing and reducing acids in mixed process media
• Withstands wet chlorine gas, hypochlorite, and chlorine dioxide solutions
• High chromium content improves resistance to oxidizing media; suitable for use in the as-welded condition
• Good fabrication and welding performance for CPI equipment
Element | Ni | Cr | Mo | Fe | W | Mn | Si | C |
INCOLOY 718 | Balance | 20.0–22.5 | 12.5–14.5 | 2.0–6.0 | 2.5–3.5 | ≤0.50 | ≤0.08 | ≤0.015 |
Extremely low carbon and silicon help maintain corrosion resistance in as-welded structures.
Property | Value |
Tensile Strength (Rm) | ≥ ≥ 1275 MPa |
Yield Strength (Rp0.2) | ≥ ≥ 1034 MPa |
Elongation | ≥ ≥ 12 % |
Hardness | ≤ 331 HB |
Mechanical properties may vary slightly with product form and heat treatment condition.
Standard System | Specification |
ASTM / ASME | ASTM B574 / ASME SB-574 |
EN | EN 10204 |
UNS | N06022 |
DIN | 2.4668 |
JIS | NW 6022 |
Item | Range |
Diameter | 6 – 450 mm |
Length | Up to 6000 mm |
Shape | Round / Square / Flat / Hex |
Surface Finish | Black / Peeled / Ground / Polished |
End | Saw-cut / Facing / Chamfer |
Custom sizes, tight tolerances, and cut-to-length service are available upon request.
• Solution Annealed
• Age Hardened
• Gas turbine discs, compressor blades and rotor shafts
• Aerospace engine components and rocket motors
• Cryogenic storage tanks and space vehicle structures
• High-strength fasteners and springs for high-pressure service
• Downhole oil and gas tools and wellhead components
• Nuclear reactor cores, pumps, and valves
• Chemical process equipment requiring high strength and corrosion resistance
INCOLOY 718 can be fabricated and welded using standard nickel-alloy practices.
Common welding methods include:
• GTAW (TIG)
• GMAW (MIG)
• SMAW
Matching filler metals such as ERNiFeCr-2 (Alloy 718) are typically recommended.
• EN 10204 3.1 Material Test Certificate
• Chemical composition analysis
• Mechanical testing (tensile, hardness)
• PMI / XRF testing available
• Dimensional inspection
• Third-party inspection on request (BV, SGS, TUV, DNV)
• PVC protective film on surface (where applicable)
• Wooden pallets or export-grade crates
• Seaworthy packaging for long-distance shipment
• Global delivery by sea, air, or multimodal transport
• Professional nickel-based alloy manufacturer in China
• Stable raw material sourcing and melting control
• Wide stock and fast production cycle
• Competitive pricing for global projects
• Experience with international EPC, OEM, and distributors
For quotation or technical consultation, please provide:
• Required grade (INCOLOY 718)
• Diameter × Length
• Quantity
• Surface finish / delivery condition
• Application environment
Our technical team will respond with datasheets, pricing, and delivery schedule promptly.
