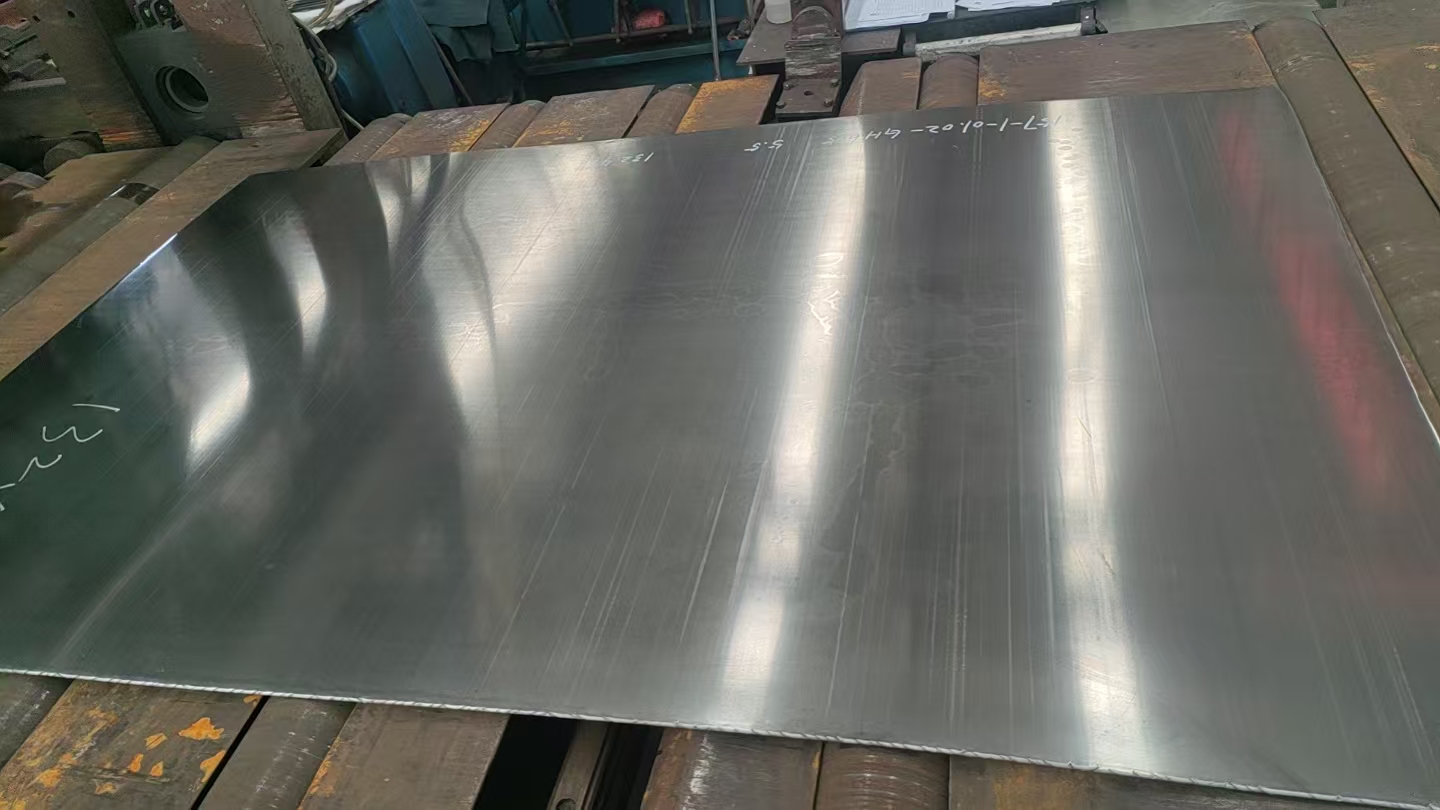

HASTELLOY C-276（UNSN10276） Sheet / Plate
Nickel-Chromium-Molybdenum-Tungsten Alloy for Severe Corrosive Environments
HASTELLOY C-276 is a nickel-chromium-molybdenum alloy with tungsten designed for outstanding corrosion resistance in a wide range of aggressive chemical environments. With extremely low carbon and silicon, it helps maintain corrosion resistance in as-welded structures and provides excellent resistance to pitting, crevice corrosion, and chloride stress corrosion cracking.
As a professional Chinese nickel-based alloy manufacturer, we supply HASTELLOY C-276 sheets and plates with stable chemistry, consistent mechanical properties, and flexible dimensional customization for global industrial users.
Typical supply range (custom sizes and tolerances available upon request):
Item | Range / Options | Notes |
Thickness | 0.5 – 50 mm | Sheet typically ≤ 6 mm; Plate typically ≥ 6 mm (project-defined). |
Width | Up to 2000 mm | Slitting service available; define tolerance if critical. |
Length | Up to 6000 mm | Cut-to-length (shearing), waterjet/plasma by agreement. |
Surface finish | 2B / No.1 / BA / Polished | PVC protective film optional for surface-critical parts. |
Edge | Mill edge / Slit edge | Deburring / edge conditioning available. |
Flatness / tolerance | Per ASTM/EN or as agreed | Define flatness for heat-exchanger plates and welded assemblies. |
Delivery condition | Solution annealed (standard) | Pickled/bright annealed depending on thickness/finish. |
Dimension definition: THK × WIDTH × LENGTH.
• Excellent resistance to pitting and crevice corrosion in chloride media
• Outstanding resistance to chloride stress corrosion cracking (SCC)
• Strong resistance to oxidizing and reducing acids in mixed process media
• Withstands wet chlorine gas, hypochlorite, and chlorine dioxide solutions
• Extremely low carbon and silicon for improved as-welded corrosion performance
• Good fabrication and welding performance for CPI equipment
Element | Ni | Cr | Mo | Fe | W | Mn | Si | C |
HASTELLOY C-276 | Balance | 14.5–16.5 | 15.0–17.0 | 4.0–7.0 | 3.0–4.5 | ≤1.0 | ≤0.08 | ≤0.01 |
Extremely low carbon and silicon help maintain corrosion resistance in as-welded structures.
Property | Value |
Tensile Strength (Rm) | ≥ 690 MPa |
Yield Strength (Rp0.2) | ≥ 283 MPa |
Elongation | ≥ 40 % |
Hardness | ≤ 90 HRB |
Mechanical properties may vary slightly with product form and heat treatment condition.
Standard System | Specification |
ASTM / ASME | ASTM B575 / ASME SB-575 |
EN | EN 10204 |
UNS | N10276 |
DIN | 2.4819 |
JIS | NW 0276 |
Item | Range |
Thickness | 0.5 – 50 mm |
Width | Up to 2000 mm |
Length | Up to 6000 mm |
Surface Finish | 2B / BA / No.1 / Polished |
Edge | Mill edge / Slit edge |
Custom sizes, tight tolerances, and cut-to-length service are available upon request.
• Solution Annealed
• Pickled or Bright Annealed (for thin sheets)
• Chemical processing reactors, columns, and heat exchangers
• Flue gas desulfurization (FGD) scrubbers, ducting, and absorbers
• Pulp & paper bleach plant and chemical handling equipment
• Chlorination systems and hypochlorite service equipment
• Waste incineration / pollution control systems
• Oil & gas sour service and corrosion-resistant components
• Seawater / brine handling and marine environments
HASTELLOY C-276 can be fabricated and welded using standard nickel-alloy practices.
Common welding methods include:
• GTAW (TIG)
• GMAW (MIG)
• SMAW
Matching filler metals such as ERNiCrMo-4 are typically recommended.
• EN 10204 3.1 Material Test Certificate
• Chemical composition analysis
• Mechanical testing (tensile, hardness)
• PMI / XRF testing available
• Dimensional inspection
• Third-party inspection on request (BV, SGS, TUV, DNV)
• PVC protective film on surface (where applicable)
• Wooden pallets or export-grade crates
• Seaworthy packaging for long-distance shipment
• Global delivery by sea, air, or multimodal transport
• Professional nickel-based alloy manufacturer in China
• Stable raw material sourcing and melting control
• Wide stock and fast production cycle
• Competitive pricing for global projects
• Experience with international EPC, OEM, and distributors
For quotation or technical consultation, please provide:
• Required grade (HASTELLOY C-276)
• Thickness × Width × Length
• Quantity
• Surface finish / delivery condition
• Application environment
Our technical team will respond with datasheets, pricing, and delivery schedule promptly.
