HASTELLOY X（UNS N06002）BAR/ROD-Leading Provider of Corrosion-Resistant Nickel Alloys for Global Industries. Custom Solutions in Hastelloy, Inconel, Incoloy and Monel.

HASTELLOY X（UNSN06002） Bar/Rod

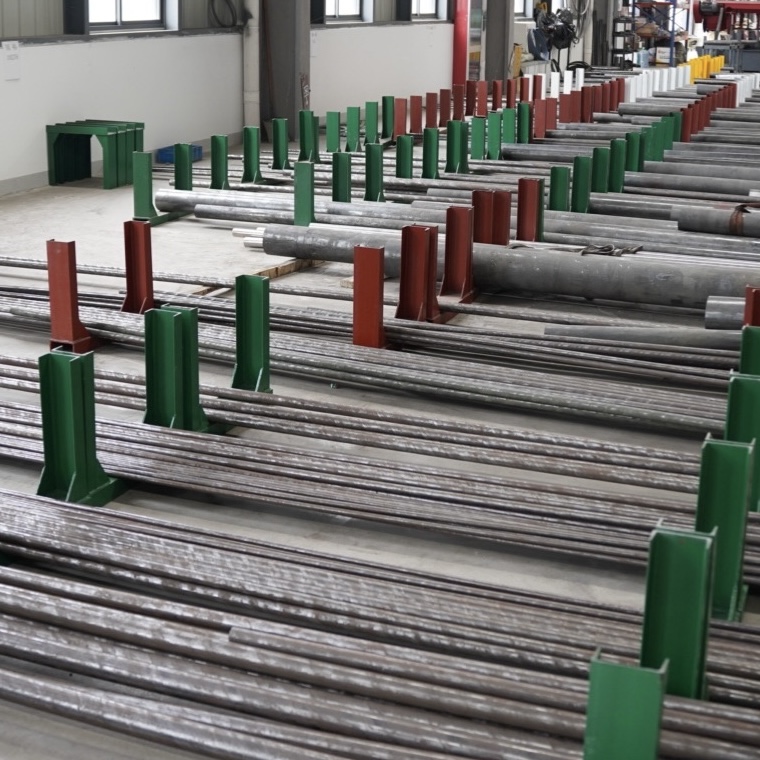

hastelloy x bar
Nickel-Chromium-Iron-Molybdenum Alloy for High-Temperature & Oxidation Resistance

HASTELLOY X bar is widely used for machined components requiring high-temperature strength, oxidation resistance, and good resistance to carburizing/nitriding furnace atmospheres. It also offers good stress-corrosion cracking resistance in certain petrochemical environments.

As a professional Chinese nickel-based alloy manufacturer, we supply HASTELLOY X bar with stable chemistry, consistent mechanical properties, and flexible dimensional customization for global industrial users.

Sizes, Finishes & Processing (Bar / Rod)

Typical supply range (custom sizes and tolerances available upon request):

Item	Range / Options	Notes
Diameter	6 – 450 mm	Round bar standard; square/flat/hex available by request.
Length	Up to 6000 mm	Cut-to-length (sawing) by agreement; define tolerance if critical.
Shape	Round / Square / Flat / Hex	Forged / hot-rolled / cold-drawn per size requirement.
Surface finish	Black / Peeled / Ground / Polished	Surface machining available for tight tolerance.
End	Saw-cut / Facing / Chamfer	End prep available for machining and assembly.
Straightness / tolerance	Per ASTM/EN or as agreed	Define straightness for long shafts and precision parts.
Delivery condition	Solution annealed (standard)	Annealed & pickled/bright depending on size/finish.

Dimension definition: DIA × LENGTH.

Key Characteristics

• Excellent high-temperature strength and oxidation resistance
• Good fabricability and weldability for complex fabricated structures
• Good resistance to carburizing and nitriding furnace atmospheres
• Resistant to stress-corrosion cracking in certain petrochemical environments
• Suitable for oxidizing, reducing, and neutral atmospheres in furnace service

Chemical Composition (wt.%)

Element	Ni	Cr	Mo	Fe	W	Mn	Si	C
HASTELLOY X	Balance	20.5–23.0	8.0–10.0	17.0–20.0	0.2–1.0	≤1.0	≤1.0	0.05–0.15

Nominal/typical chemistry is shown. Typical additions include Co (0.5–2.5 wt.%) and minor elements such as B (≤0.008) to support high-temperature performance.

Mechanical Properties (Room Temperature, Typical)

Property	Value
Tensile Strength (Rm)	≈ 784 MPa
Yield Strength (Rp0.2)	≈ 343 MPa
Elongation	≈ 45 %
Hardness	≈ 86–92 HRB

Mechanical properties may vary slightly with product form and heat treatment condition.

Standard Specifications

Standard System	Specification
ASTM / ASME	ASTM B572 / ASME SB-572
EN	EN 10204
UNS	N06002
DIN	2.4665
JIS	NW6002

Available Bar Size Range

Item	Range
Diameter	6 – 450 mm
Length	Up to 6000 mm
Shape	Round / Square / Flat / Hex
Surface Finish	Black / Peeled / Ground / Polished
End	Saw-cut / Facing / Chamfer

Custom sizes, tight tolerances, and cut-to-length service are available upon request.

Heat Treatment Condition

• Solution Annealed
• Bright Annealed / Pickled (where applicable)

Typical Applications

• Furnace rolls, fixtures, trays, and support components
• Gas turbine engine components (spray bars, flame holders, housings)
• Retorts, muffles, and catalyst support grids
• High-temperature structural parts requiring good fabricability

Fabrication & Welding

HASTELLOY X can be fabricated and welded using standard nickel-alloy practices.
Common welding methods include:

• GTAW (TIG)
• GMAW (MIG)
• SMAW

Matching filler metals such as ERNiCrMo-2 are typically recommended.

Quality Assurance

• EN 10204 3.1 Material Test Certificate
• Chemical composition analysis
• Mechanical testing (tensile, hardness)
• PMI / XRF testing available
• Dimensional inspection
• Third-party inspection on request (BV, SGS, TUV, DNV)

Packaging & Delivery

• PVC protective film on surface (where applicable)
• Wooden pallets or export-grade crates
• Seaworthy packaging for long-distance shipment
• Global delivery by sea, air, or multimodal transport

Why Choose Us

• Professional nickel-based alloy manufacturer in China
• Stable raw material sourcing and melting control
• Wide stock and fast production cycle
• Competitive pricing for global projects
• Experience with international EPC, OEM, and distributors

Inquiry Information

For quotation or technical consultation, please provide:
• Required grade (HASTELLOY X)
• Diameter × Length
• Quantity
• Surface finish / delivery condition
• Application environment

Our technical team will respond with datasheets, pricing, and delivery schedule promptly.
