INCOLOY 800/800H（UNS N08800/N08810）WIRE-Leading Provider of Corrosion-Resistant Nickel Alloys for Global Industries. Custom Solutions in Hastelloy, Inconel, Incoloy and Monel.

INCOLOY 800/H（UNSN08810） WIRE

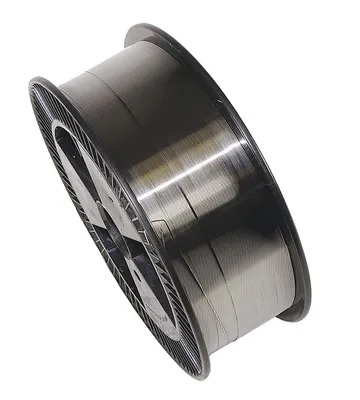

incoloy 800 800h wire
Nickel-Iron-Chromium alloy for high-temperature oxidation and carburization resistance

INCOLOY 800/H wire is supplied for corrosion-resistant fasteners, springs, woven mesh, and also as welding wire/filler applications where compatibility with C-22 base metal is required. The alloy maintains excellent corrosion resistance in both oxidizing and reducing environments and is suitable for demanding chemical process and pollution-control services.

As a professional Chinese nickel-based alloy manufacturer, we supply INCOLOY 800/H in multiple product forms with stable chemistry, consistent mechanical properties, and flexible dimensional customization for global industrial users.

Sizes, Finishes & Processing (Wire)

Typical supply range (custom sizes and tolerances available upon request):

Item	Range / Options	Notes
Diameter	0.5 – 20 mm	Wire in coils/spools; straight lengths by request (limited sizes).
Form	Coil / Spool / Straight	Packaging per diameter and customer requirement.
Surface finish	Bright / Pickled / Descaled	Surface condition per application (forming/welding).
Packaging	Spools / Coils	Labeling and moisture-proof packing available.
Tolerance	Per ASTM/EN or as agreed	Define diameter tolerance for precision wire.
Straightness	As agreed	For straight wire, define straightness and cut length tolerance.
Delivery condition	Solution annealed (standard)	Annealed & pickled/bright depending on finish.

Dimension definition: DIA × COIL/SPOOL.

Key Characteristics

• Excellent resistance to pitting and crevice corrosion in chloride media
• Outstanding resistance to chloride stress corrosion cracking (SCC)
• Strong resistance to oxidizing and reducing acids in mixed process media
• Withstands wet chlorine gas, hypochlorite, and chlorine dioxide solutions
• High chromium content improves resistance to oxidizing media; suitable for use in the as-welded condition
• Good fabrication and welding performance for CPI equipment

Chemical Composition (wt.%)

Element	Ni	Cr	Mo	Fe	W	Mn	Si	C
INCOLOY 800/H	Balance	20.0–22.5	12.5–14.5	2.0–6.0	2.5–3.5	≤0.50	≤0.08	≤0.015

Extremely low carbon and silicon help maintain corrosion resistance in as-welded structures.

Mechanical Properties (Room Temperature, Typical)

Property	Value
Tensile Strength (Rm)	≥ ≥ 531 MPa
Yield Strength (Rp0.2)	≥ ≥ 200 MPa
Elongation	≥ ≥ 35 %
Hardness	≤ 126 HB

Mechanical properties may vary slightly with product form and heat treatment condition.

Standard Specifications

Standard System	Specification
ASTM / ASME	ASTM B574 / ASME SB-574
EN	EN 10204
UNS	N06022
DIN	1.4876/1.4958
JIS	NW 6022

Available Wire Size Range

Item	Range
Diameter	0.5 – 20 mm
Form	Coil / Spool / Straight
Surface Finish	Bright / Pickled / Descaled
Packaging	Spools / Coils
Delivery condition	Solution annealed (standard)

Custom sizes, tight tolerances, and cut-to-length service are available upon request.

Heat Treatment Condition

• Solution Annealed

Typical Applications

• Petrochemical and refinery furnace components
• Heat-treating and carburizing equipment
• Power generation superheater and reheater tubing
• Chemical and petrochemical processing equipment
• Furnace hardware, radiant tubes and thermocouples
• Nuclear steam generator tubes and industrial furnace parts
• Pressure vessels and heat exchangers

Fabrication & Welding

INCOLOY 800/H can be fabricated and welded using standard nickel-alloy practices.
Common welding methods include:

• GTAW (TIG)
• GMAW (MIG)
• SMAW

Matching filler metals such as ENiCrFe-2 (Alloy 82) are typically recommended.

Quality Assurance

• EN 10204 3.1 Material Test Certificate
• Chemical composition analysis
• Mechanical testing (tensile, hardness)
• PMI / XRF testing available
• Dimensional inspection
• Third-party inspection on request (BV, SGS, TUV, DNV)

Packaging & Delivery

• PVC protective film on surface (where applicable)
• Wooden pallets or export-grade crates
• Seaworthy packaging for long-distance shipment
• Global delivery by sea, air, or multimodal transport

Why Choose Us

• Professional nickel-based alloy manufacturer in China
• Stable raw material sourcing and melting control
• Wide stock and fast production cycle
• Competitive pricing for global projects
• Experience with international EPC, OEM, and distributors

Inquiry Information

For quotation or technical consultation, please provide:
• Required grade (INCOLOY 800/H)
• Diameter × Length
• Quantity
• Surface finish / delivery condition
• Application environment

Our technical team will respond with datasheets, pricing, and delivery schedule promptly.
