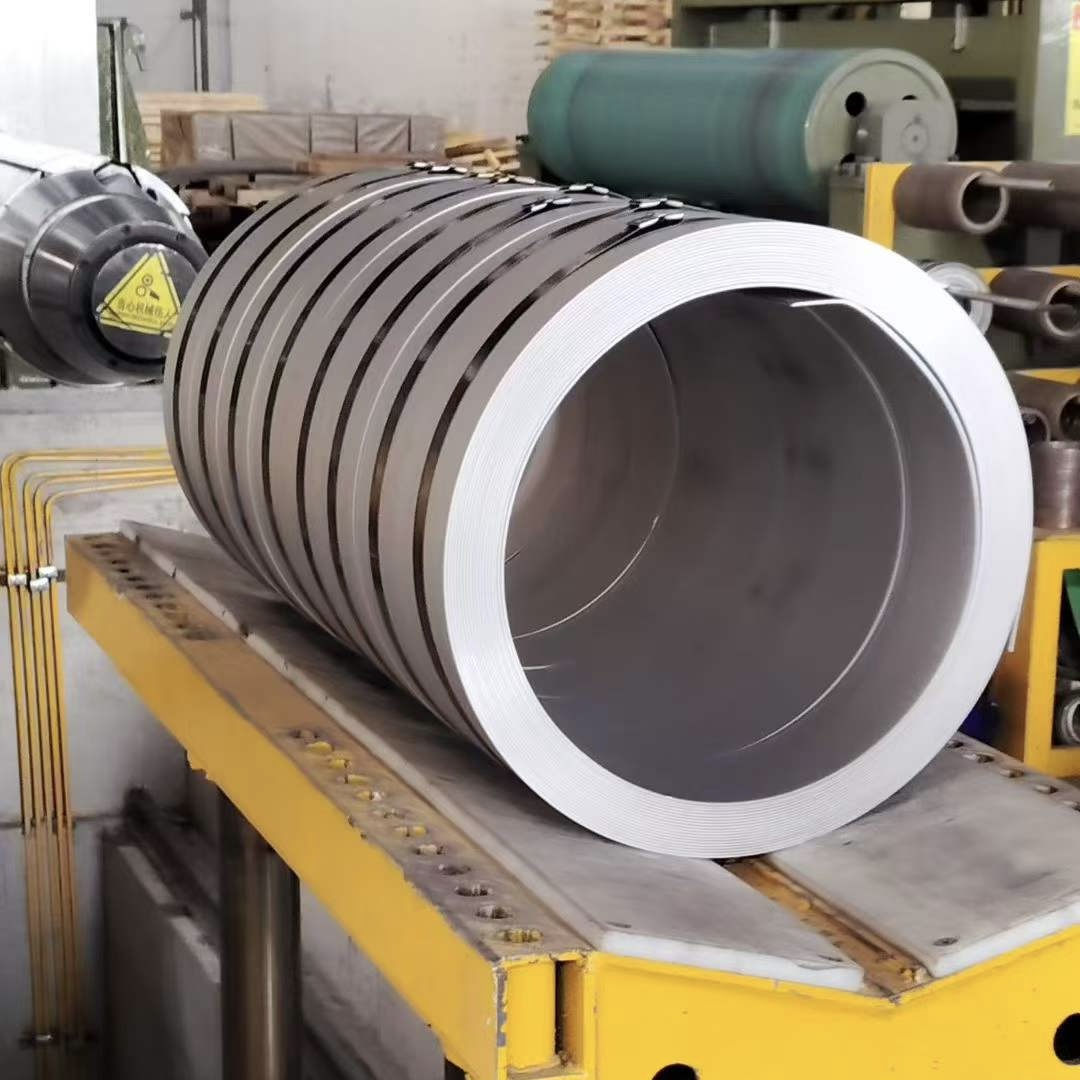

INCOLOY 825（UNSN08825） STRIP
Nickel-Iron-Chromium-Molybdenum-Copper Alloy for Superior Acid and Chloride Corrosion Resistance
INCOLOY 825 strip is widely used for corrosion-resistant cladding, bellows, flexible connectors, gaskets and stamped components in chemical processing and pollution-control equipment. Its high chromium content improves resistance to oxidizing media, while molybdenum and tungsten contribute to excellent resistance to pitting, crevice corrosion and chloride stress corrosion cracking.
As a professional Chinese nickel-based alloy manufacturer, we supply INCOLOY 825 in multiple product forms with stable chemistry, consistent mechanical properties, and flexible dimensional customization for global industrial users.
Typical supply range (custom sizes and tolerances available upon request):
Item | Range / Options | Notes |
Thickness | 0.1 – 3.0 mm | Cold-rolled strip; specify thickness tolerance if critical. |
Width | Up to 600 mm | Slitting available; define edge condition. |
Coil ID | 300 / 400 / 500 mm | Standard IDs; custom ID available by request. |
Coil weight | Up to 2000 kg | Depends on thickness and width. |
Edge | Slit edge / Deburred edge | Edge conditioning available for stamping/forming. |
Tolerance | Per ASTM/EN or as agreed | Define flatness/camber for precision parts. |
Delivery condition | Solution annealed (standard) | Pickled/bright depending on thickness/finish. |
Dimension definition: THK × WIDTH × COIL.
• Excellent resistance to sulfuric and phosphoric acids across wide concentration ranges
• Strong resistance to chloride stress corrosion cracking and crevice corrosion
• Good resistance to reducing and oxidizing media; performs well in mixed acid systems
• Molybdenum and copper enhance resistance to reducing acids and pitting environments
• Titanium stabilization improves resistance to intergranular corrosion after welding
• Good fabricability and weldability for chemical process equipment
Element | Ni | Cr | Mo | Fe | Cu | Mn | Si | C |
INCOLOY 825 | Balance | 20.0–22.5 | 12.5–14.5 | 2.0–6.0 | 2.5–3.5 | ≤0.50 | ≤0.08 | ≤0.015 |
Extremely low carbon and silicon help maintain corrosion resistance in as-welded structures.
Property | Value |
Tensile Strength (Rm) | ≥ 550 MPa |
Yield Strength (Rp0.2) | ≥ 220 MPa |
Elongation | ≥ 30 % |
Hardness | ≤ 90 HRB |
Mechanical properties may vary slightly with product form and heat treatment condition.
Standard System | Specification |
ASTM / ASME | ASTM B424 / ASME SB-424 |
EN | EN 10204 |
UNS | N06022 |
DIN | 2.4858 |
JIS | NW 6022 |
Item | Range |
Thickness | 0.1 – 3.0 mm |
Width | Up to 600 mm |
Coil ID | 300 / 400 / 500 mm |
Coil weight | Up to 2000 kg |
Edge | Slit edge / Deburred edge |
Custom sizes, tight tolerances, and cut-to-length service are available upon request.
• Solution Annealed
• Annealed & Pickled (where applicable)
• Chemical processing equipment, tanks, columns, heat exchangers and piping
• Sulfuric acid and phosphoric acid production, pickling and acid handling systems
• Oil and gas sour service components, offshore piping and marine hardware
• Pollution-control and FGD scrubbers, ducting and absorber internals
• Heat exchanger and condenser tubing, seawater/brine service (as applicable)
• Nuclear fuel reprocessing and high-corrosion environments
INCOLOY 825 can be fabricated and welded using standard nickel-alloy practices.
Common welding methods include:
• GTAW (TIG)
• GMAW (MIG)
• SMAW
Matching filler metals such as ERNiCrMo-3 are typically recommended.
• EN 10204 3.1 Material Test Certificate
• Chemical composition analysis
• Mechanical testing (tensile, hardness)
• PMI / XRF testing available
• Dimensional inspection
• Third-party inspection on request (BV, SGS, TUV, DNV)
• PVC protective film on surface (where applicable)
• Wooden pallets or export-grade crates
• Seaworthy packaging for long-distance shipment
• Global delivery by sea, air, or multimodal transport
• Professional nickel-based alloy manufacturer in China
• Stable raw material sourcing and melting control
• Wide stock and fast production cycle
• Competitive pricing for global projects
• Experience with international EPC, OEM, and distributors
For quotation or technical consultation, please provide:
• Required grade (INCOLOY 825)
• Diameter × Length
• Quantity
• Surface finish / delivery condition
• Application environment
Our technical team will respond with datasheets, pricing, and delivery schedule promptly.
