INCONEL 600（UNS N06600） Sheet/Plate

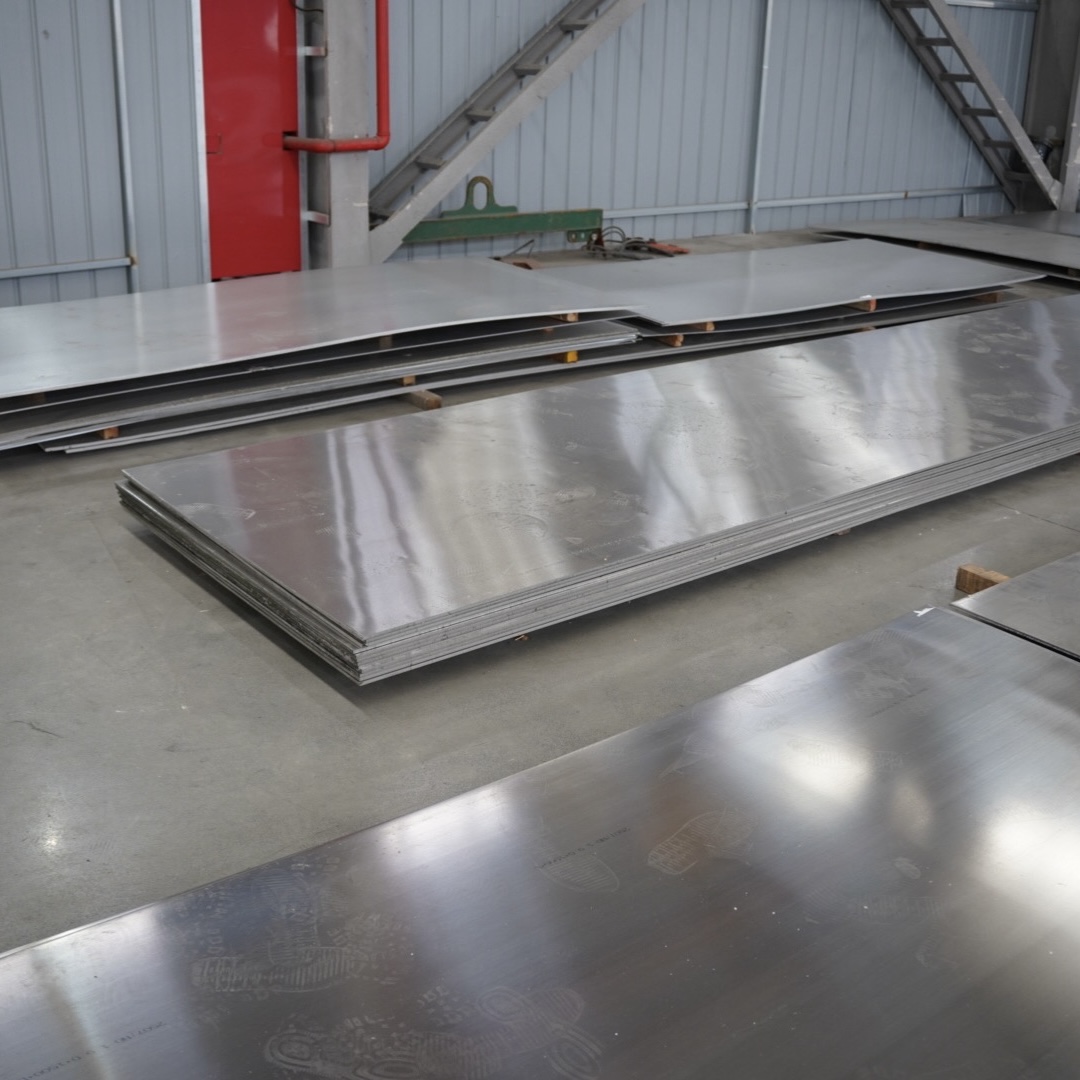

inconel 600 plate sheet
Nickel-Chromium-Iron Alloy for High-Temperature & Corrosive Service

INCONEL 600 sheet/plate is widely used for furnace parts, heat-treating equipment, chemical processing vessels, and corrosion/heat resistant linings where reliable performance is required across cryogenic to elevated temperatures.

As a professional Chinese nickel-based alloy manufacturer, we supply INCONEL 600 in multiple product forms with stable chemistry, consistent mechanical properties, and flexible dimensional customization for global industrial users.

Sizes, Finishes & Processing (Sheet / Plate)

Typical supply range (custom sizes and tolerances available upon request):

Item	Range / Options	Notes
Thickness	0.5 – 60 mm	Plate > 6 mm; sheet 0.5–6 mm typical; custom sizes upon request.
Width	Up to 2000 mm	Slitting available; define tolerance if critical.
Length	Up to 6000 mm	Cut-to-length (shearing/laser/plasma) by agreement; define tolerance if critical.
Form	Sheet / Plate	Cold-rolled sheet / hot-rolled plate per thickness.
Surface finish	2B / BA / No.1 / Brushed / Polished	Pickled surface for plate; bright finish for thin sheet.
Edge	Mill edge / Slit edge	Edge conditioning available for safety and assembly.
Delivery condition	Solution annealed (standard)	Annealed & pickled / bright depending on finish and thickness.

Dimension definition: THK × WIDTH × LENGTH.

Key Characteristics

• Excellent oxidation resistance up to 1093°C (2000°F) in air and many industrial atmospheres
• Good resistance to carburization and nitriding environments
• Strong resistance to chloride-ion stress corrosion cracking (SCC)
• Good resistance to caustic alkalis and many organic/inorganic acids
• High nickel content provides resistance to reducing media and high-purity water corrosion
• Good fabrication and welding performance for demanding service equipment

Chemical Composition (wt.%)

Element	Ni	Cr	Fe	C	Mn	Si	Cu	S
INCONEL 600	≥ 72.0	14.0–17.0	6.0–10.0	≤ 0.15	≤ 1.00	≤ 0.50	≤ 0.50	≤ 0.015

Nickel and chromium provide a balanced combination of oxidation resistance and corrosion resistance across a wide range of service media.

Mechanical Properties (Room Temperature, Typical)

Property	Value
Tensile Strength (Rm)	≥ 550 MPa
Yield Strength (Rp0.2)	≥ 240 MPa
Elongation	≥ 30 %
Hardness	≤ 95 HRB

Mechanical properties may vary slightly with product form, thickness, and heat treatment condition.

Standard Specifications

Standard System	Specification
ASTM / ASME	ASTM B168 / ASME SB-168
EN	EN 10204
UNS	N06600
DIN	2.4816
JIS	NCF 600

Available Sheet/Plate Size Range

Item	Range
Thickness	0.5 – 60 mm
Width	Up to 2000 mm
Length	Up to 6000 mm
Finish	2B / BA / No.1 / Brushed / Polished
Form	Sheet / Plate

Custom sizes, tight tolerances, and cut-to-length service are available upon request.

Heat Treatment Condition

• Solution Annealed (standard)
• Annealed & Pickled / Bright (where applicable)

Typical Applications

• Furnace muffles, retorts, and heat-treat fixtures
• Chemical processing vessels, trays, and corrosion-resistant linings
• Heat shields and high-temperature structural panels
• Nuclear engineering components (non-pressure boundary uses)
• Chlorination systems and dry chlorine service components
• General high-temperature oxidation service equipment

Fabrication & Welding

INCONEL 600 can be fabricated and welded using standard nickel-alloy practices.
Common welding methods include:

• GTAW (TIG)
• GMAW (MIG)
• SMAW

Matching filler metals such as ERNiCr-3 are typically recommended.

Quality Assurance

• EN 10204 3.1 Material Test Certificate
• Chemical composition analysis
• Mechanical testing (tensile, hardness)
• PMI / XRF testing available
• Dimensional inspection
• Third-party inspection on request (BV, SGS, TUV, DNV)

Packaging & Delivery

• PVC protective film on surface (where applicable)
• Wooden pallets or export-grade crates
• Seaworthy packaging for long-distance shipment
• Global delivery by sea, air, or multimodal transport

Why Choose Us

• Professional nickel-based alloy manufacturer in China
• Stable raw material sourcing and melting control
• Wide stock and fast production cycle
• Competitive pricing for global projects
• Experience with international EPC, OEM, and distributors

Inquiry Information

For quotation or technical consultation, please provide:
• Required grade (INCONEL 600)
• THK × WIDTH × LENGTH
• Quantity
• Surface finish / delivery condition
• Application environment

Our technical team will respond with datasheets, pricing, and delivery schedule promptly.
